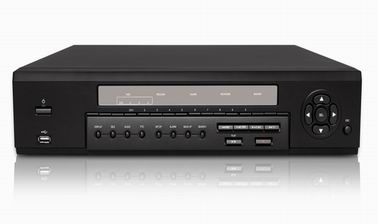

16ch HD SDI DVR 1080p HDMI
1) 1080p (1920x1080) Resolution Recording
2) H.264 Compression provides smaller file size & lower bandwidth
3) 1080p HDMI output & simultaneous VGA output and Real Time Live View
4) QUADPLEX: Allows simultaneous live view or playback while still continuing to record, network transfer, and back up data.
5) 4ch, 8ch, 16ch Audio Input, 1 Audio Output
6) 4ch, 8ch, 16ch Alarm Input, 1/1/4 Alarm Output.
7) 1 RS-485 for Camera Control.
8) 2 USB 2.0 port for backup of recorded files, firmware upgrade, configuration export/import, or USB mouse.
9) Individual channel operation such as FPS, quality, recording mode, & detection zone
10) Network hardware supports 10/100/1000 Mbps.
11) Various network access: Network client SW, Web-viewer, Smartphone APP, and Free 256 Channel CMS.
12) Remote access via PC, MAC®, or smart phones such as the iPhone®, Android™, and BlackBerry™.
13) Recording priority programmable per channel for schedule, alarm, motion, or continuous.
14) Free CMS software included for remote playback, local recording, backup, and remote setting.
15) Free DDNS server for use with Dynamic IP addresses.
16) Dual-stream support for simultaneous access from a PC, MAC, and/or a cell phone at low bandwidth.
17) E-mail event notification, along with image file attachment.
18) NTP (Network Time Protocol).
19) Watermark Verification.
20) Synchronized audio for court evidence.
21) Time Stamp over backup data for court evidence.
22) Easy and various data backup via DVD, USB flash drive, USB external HDD, and network
23) HDD S.M.A.R.T status check and alert via e-mail or internal beep.
24) USB Mouse, IR Remote Control.
25) 2 internal SATA port HDD storage up to 4TB.
Model FS-SDI404-DVR FS-SDI408-DVR FS-SDI416-DVR
Video input 4ch HD-SDI
(1080i50/60, 1080p25/30, 720p25/30/50/60) 8ch HD-SDI (1080i50/60, 1080p25/30, 720p25/30/50/60) 16ch HD-SDI (1080i50/60, 1080p25/30, 720p25/30/50/60)
Video output HDMI 1080p, VGA1080p HDMI1080p, VGA1080p HDMI1080p, VGA1080p SDI (1920x1080 60i)
Audio input 4ch 8ch 16ch
Audio output 1ch and HDMI 1ch and HDMI 1ch and HDMI
Video/
Audio compression H.264/G.711 H.264/G.711 H.264/G.711
Alarm 4ch input /1ch output 8ch input/1ch output 16ch input/1ch output
Multi Operation Quadplex (Playback, Recording, Backup, Network)
Record Resolution
(NTSC/PAL) D1 120/100fps 120/100fps 120/100fps
Half D1 120/100fps 240/200fps 240/200fps
CIF 120/100fps 240/200fps 480/400fps
Record quality grade 5 levels
Record mode Continuous / Schedule / Motion/ Sensor/ Manual
Pre Recording Up to 20minutes
Posting Recording Up to 20minutes
Playback Multi Decoding 1, 4 1, 4, 8 1, 4, 8, 9, 16
Search Mode Timeline, Event, Archive, Log, Specific Time
Display Frame Rate NTSC: 30fps/ch, 60 fields; PAL: 25fps/ch, 50 fields
Capacity of 1 HDD 2TB
Internal HDD Number 1EA (Max 2EA: w/o DVDRW)
USB Port 2 (Front 1, Rear 1)
S.M.A.R.T HDD Error Check and Reporting using by Alarm and e-Mail
Operation IR Remote control, Front Button, Mouse, Keyboard controller
Console & POS 1 RS-232C
PTZ & Keyboard control 1 RS-485
Dynamic DNS Free DDNS
Dual Network Streaming CIF 60fps/50fps CIF 120fps/100fps
Web viewer (1:1) Live Live, Search, Backup, PTZF, Remote Setup, Remote Upgrade
3G Mobile Viewer (1:1) Live Live, Search, PTZF
Client Software (1:1) Live Live, Search, Backup, PTZF, Remote Setup, Remote Upgrade
CMS (1:N) Live, Search, Backup, PTZF, Remote Setup, Remote Upgrade
Watermarking Yes
DLS (Day Light Saving) Yes
NTP(Network Time Protocol) Yes
Internal Beep By Video Loss, HDD error
Multi-Language Yes (more than 20 languages)
3G Mobile iPhone / Android / Blackberry
Power DC 12V 5A AC 100~120V/200~240V, 50/60Hz, 280W
Operation Temperature 5 – 40degree During storage: -10 - +50 degree
Net Weight (Gross Weight) 4.1Kgs (6.2Kgs) 6.8 kg (9.0 kg)
Dimension 38cm x 34cm x 7.2cm 43.2cm x 43cm x 9.8cm
|
|
